Environmental Chamber Manufacturer in India used for Industrial Products
Environment Chamber Specification
Environmental chamber, popularly known as climatic chamber is a Test Chamber Equipment primarily used to test the effects of specified environmental conditions on biological items, industrial products, materials, electronic devices and components. These Environment Chambers are incorporated with innovative technology along with quality construction serving variety of industries. Test chambers are of different types such as small benchtop chambers to full walk in chambers. They are manufactured and supplied in the market by OBROMAX, a twenty five year old company in the market and are ISO 9001:2008, ISO 13845:2016,CE,GMP certified.working chamber
|
Dimension Inner (WXDXH) |
Capacity |
Volume |
|
700x640x900 mm |
420 ltrs |
15 Cu.Ft |
|
700x640x970 mm |
450 ltrs |
16 Cu.Ft |
|
700x640x1100 mm |
500 ltrs |
18 Cu.Ft |
|
700x700x1100 mm |
560 ltrs |
20 Cu.Ft |

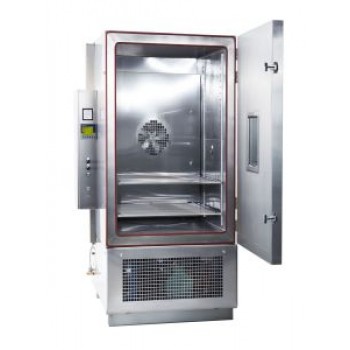

Environmental Chamber
Model No : ATI-196
Technical Matrix
| Temperature Range | 5oC to 60oC |
| Temperature Accuracy | + 1oC or better |
| Temperature uniformity | + 1oC or better |
| Temperature Control | Microprocessor based PID Controller |
| Audio Visual Alarm | Visual and Acoustic |
| Temperature Sensor | PT 100 |
| Display | LED / LCD |
| Humidity Range | 40% to 90% Relative Humidity |
| Humidity Accuracy | + 3% Relative humidity |
| Humidity sensor | Capacitive |
| Water Reservoir | 22 ltrs |
| Inner wall of chamber | Stainless steel SS 304 |
| Outer wall of chamber | Powder coated cold rolled sheet |
| Door | Inner SS 304 & Outer MS |
| Shelves (Wire Mesh) | Stainless steel |
| Air Circulation Fan | Inbuilt |
| Insulation | PUF |
| Compressor | Single Stage |
| Cooling | CFC free |
| Refrigerant | R 404a |
| Castors | Lockable |
| Computer Interface (RS 232) | Optional |
| Power Supply | 220-230V, Single Phase |
