Round Vacuum Oven Manufacturer and Supplier in India
Vacuum Round Oven Specification

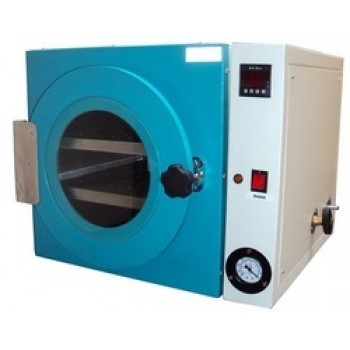

Obromax Round Vacuum Oven provides the vacuum of 700mm Hg which is displayed by vacuum gauge mounted on panel of oven and have the temperature range of 5 degree C above ambient to 150 degree C, it is controlled by a Digital Temperature Controller which has an accuracy of ± 1°C. It also has the capability to holdup high vacuum. This equipment is equipped with vacuum gauge and see through window made of toughened transparent glass. This product is manufactured and supplied under Ovens n Incubators category.working chamber
|
Dia X Depth (Working Chamber Size) |
Volume |
|
200 X 250 mm (8” X 10”) |
7 Ltrs |
|
250 X 300 mm (10” X 12”) |
14 Ltrs |
|
300 X 300 mm (12” X 12”) |
21 Ltrs |
Vacuum Oven (Round)
Model No : ATI-113
Technical Matrix:
| Construction | Inner | SS-304 |
| Outer | Powder Coated MS | |
| Door | Inner SS-304 and Outer MS | |
| Window | Temperature resistant toughened glass observation window on the door | |
| Temperature | Range | Ambient + 5 to 150 degree C |
| Deviation | + 1 degree C or better | |
| Readability | + 1 degree C or better | |
| Controller | PID controller | |
| Sensor | PT 100 | |
| Display | LED / LCD | |
| Adjustable alarm limits | Visual and acoustic | |
| Maximum Pressure | 700mm of mercury | |
| Glass Wool Insulation | 75 mm | |
| Air Circulation Fan | Inbuilt | |
| Heating Elements | ISI Marked | |
| Wire Mesh Shelves | 1/2/3 (depends on the working chamber size) | |
| Timer 1-999 hours | Optional | |
| Serial Data Port | Optional | |
| Power consumption | 230 V, 50 Hz | |
