Double Walled Rectangular Water Bath Manufacturer in India used for Liquid Evaporation
Double Walled Water Bath Specification
Obromax Double walled water bath generally used for evaporation liquids/heating the material at required temperature having high thermal efficiency. These Lab Water Solution Equipment are low cost options for heating-ideal tool for Laboratories, Pharmaceutical, Food & Beverage Industries & Institutions. Obromax Water Bath is Robust design, Fast functionality, Long service life & User-friendly.working chamber
| Size | Number of Holes | Volume |
| 300mm X 250mm X 100 mm | 6 holes of 75 mm dia | 8 Litres |
| 300mm X 350mm X 100 mm | 9 holes of 75 mm dia | 11 Litres |
| 350 mm X 400mm X 100mm | 12 holes of 75 mm dia | 15 Litres |

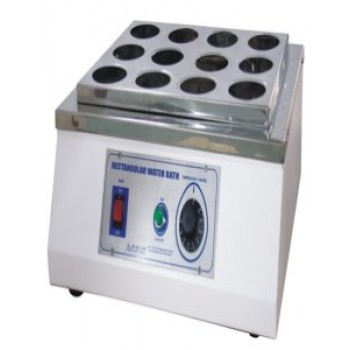

Water Bath Rectangular (Double Walled)
Model No : ATI-133
Technical Matrix
| Inner Chamber | Stainless Steel (SS 304) / Copper |
| Outer Chamber | M.S. Sheet Duly Powder Coated |
| Insulation | Glass Wool |
| Temperature Range | Ambient+5 to 99oc |
| Temperature Accuracy | ±5oC / ±1oc or better (with PID) |
| Thermostatically Controlled | Neon Lamp/ PID Controller |
| Provided with | Drainage facility |
| Concentric Rings holes dia | 75 mm |
| Power Supply | 220/230, Single Phase AC Supply |
