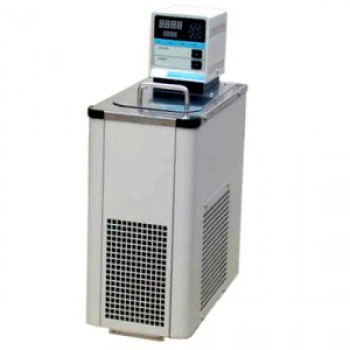

Manufacturer of Refrigerated Circulating Water Bath in India
Refrigerated Circulating Water Baths Specification
Refrigerated Circulating Water Baths are a special control module that are provided with excellent accuracy and uniformity. These circulating baths are ideal for immersing both samples and circulating controlled temperature liquid to external equipment’s. These Lab Water Solution Equipment are mostly used in variety of laboratory cooling applications. These are most suitable for external temperature control applications for external systems such as rotary vacuum evaporators, polarimeters, condensers, chambers and other applications. Also, these baths offer highest levels of performance, flexibility and control for the most demanding applications. The low noise level and wide operating ranges makes the device a smart buy for the consumers.Refrigerated Circulating Water Bath
Model No : ATI-140
Technical Matrix
| Inner Chamber | Stainless Steel (SS 304) |
| Outer Chamber | M.S. Sheet Duly Powder Coated |
| Lid is also double walled | Properly insulated and is with locking facility |
| Whole unit is mounted on | A sturdy angle iron frame |
| Temperature Range | 5oc to 90oc |
| Temperature Controller | Digital PID temperature indicator cum controller |
| Temperature Accuracy | ±1oc or better |
| Temperature Sensor | PT 100 |
| Display | LCD /LED |
| Refrigeration System | CFC free hermetically sealed |
| Heating is done | with immersion type heating element |
| Fitted with stirrer | for temperature uniformity throughout the chamber |
| Fitted with FHP Pump | For circulation the cooled liquid to an external source such as condenser coils etc. |
| Working Chamber Size | 500x250x250 mm |
| Capacity | 30 Liter |
| Power supply | 220/230, Single Phase AC Supply |
